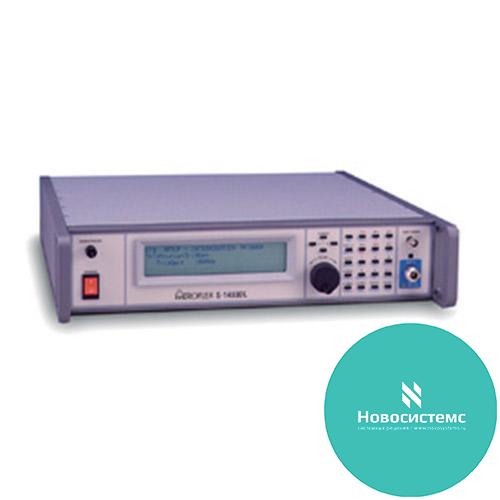

S-1403DL - Дополнительная приставка для тестирования авиационного оборудования
Производитель
Гарантия
12 месяцев
(если иной срок не предусмотрен производителем)
(если иной срок не предусмотрен производителем)
Требуется уточнить цену
В корзину
Купить в один клик
Заказать поверку/калибровку
Задать вопрос
- Информация о товаре
- Технические характеристики
- Комплект поставки
- Аналоги
- Оплата и доставка
Описание:
The S-1403DL Mode S Accessory Unit (is an upgrade to the S-1403C) supports the new Mode S Data Link and ADS-B (extended DF17 squitter). The "DL" is backward compatible with the "C" model. Current ATE programs implemented on the S-1403C will operate with the S-1403DL without program changes.
The unit provides additional pulse code modulation, as specified by RTCA/DO-l81 to the ATC-1400A for testing Mode S Transponders. The Optional MLD (Multi-Level Diversity) function is available for testing Mode S Transponders with MLD requirements
- Over 30 new screens, including support for MTL, Comm C and Comm D formats
-
Remote Operation via IEEE 488.2-19887 or RS-232
-
Continuous rotation "SLEW" control as an alternate to keypad data entry
-
Rear panel interconnects for control and signal monitoring
-
Control of P2, P3, P4 and P6 width, offset and amplitude
-
Fixed frequency/fixed level RF output for diversity antenna testing
-
Mode S interrogation up to 2500 PRF burst
-
Onboard GPIB Interface to increase the speed of ATE test routines
-
User-defined screens for user-specific tests
-
PRF generator from 99.999 sec to 2500 Hz
-
Flash memory for easy firmware upgrades
- Two Year Limited Warranty
